Post by somacast on Mar 12, 2019 20:58:13 GMT
hi ,
I wanted to add external joystick support for my pc engine gt, I searched everywhere for a tutorial or diagram at least.
any clues ? thnx
|
|
keithcourage
Punkic Cyborg
https://www.facebook.com/turbografxfan/
Posts: 220
|
Post by keithcourage on Mar 21, 2019 20:37:03 GMT
All I can think of doing would be to follow each trace for each button on the controller board and then wire up to a controller port. Turbokon and thesteve do this regularly but I have yet to see write up from either one of them.
|
|
9EG
Deep Blooper
PC Engine GT
Posts: 23
Homebrew skills: 68000 Basic
Fave PCE Shooter: R-TYPE
Fave PCE Platformer: CADASH
Fave PCE Game Overall: STREET FIGHTER II
Fave PCE RPG: NEUTOPIA II
Currently Playing: PARANOIA
|
Post by 9EG on Dec 30, 2021 6:18:06 GMT
hi , I wanted to add external joystick support for my pc engine gt, I searched everywhere for a tutorial or diagram at least. any clues ? thnx I know this is an old post but maybe this will help, I am yet to watch it though. www.youtube.com/watch?v=prAZU2iOqO8 |
|
keithcourage
Punkic Cyborg
https://www.facebook.com/turbografxfan/
Posts: 220
|
Post by keithcourage on Jan 2, 2022 14:33:12 GMT
|
|
keithcourage
Punkic Cyborg
https://www.facebook.com/turbografxfan/
Posts: 220
|
Post by keithcourage on Jan 2, 2022 14:34:24 GMT

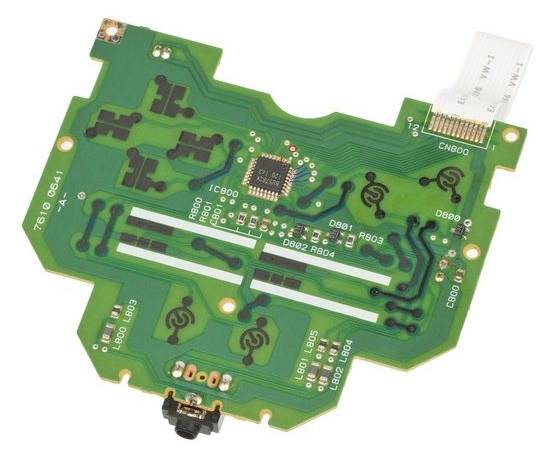

Hey, I wanted to post an update for this topic. I hadn't done the external controller port for a while and did one yesterday. There doesn't appear to be any documentation mentioning the need for the 4 Diodes that should be installed on the internal controller board. This helps greatly with controller compatibility. Without the diodes, only certain controllers will work. Picture of where the traces need to be cut(or pins lifted) then have a diode placed in between. I didn't have any smd diodes on hand at the time so I ran wires to the back side of the controller board to 4 diodes and then back to the front again. Marked with Blue  |
|
